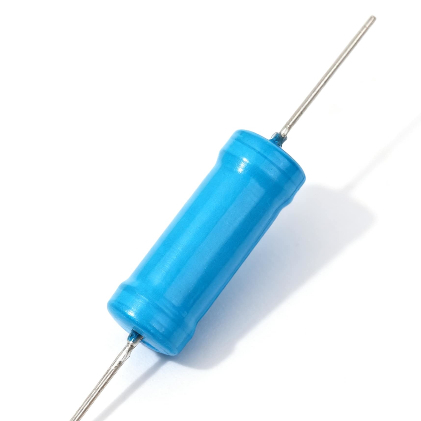

Cylindrical Thick Film Non-Inductive High Voltage Resistor
Product Overview
The cylindrical thick-film non-inductive high-voltage resistor is manufactured using advanced thick-film technology, possessing excellent withstand voltage, stability, and reliability.
Its substrate is high-purity alumina ceramic with a purity of over 95%, and the resistive film is formed by sintering precious metal pastes such as silver, ruthenium, and palladium at 850℃, exhibiting good thermal conductivity and electrical properties.
The product is available with silicone or glass encapsulation, enabling stable operation in various environments including air, high-pressure oil, and epoxy resin.
Its small size and high power density make it suitable for high-voltage pulse and voltage regulation systems, meeting the stringent application requirements of industrial and medical fields.
Product Technical Specifications
| Item |
Parameter Description |
| Product Name |
Cylindrical Thick Film Non-Inductive High Voltage Resistor |
| Power Range |
0.5W ～ 25W |
| Resistance Accuracy |
±0.5%, ±1%, ±2%, ±5%, ±10% |
| Package Type |
Silicone Encapsulation / Glass Dielectric Encapsulation |
| Operating Environment |
Air, High-Pressure Oil, Epoxy Resin |
| Structural Characteristics |
Non-Inductive Structure Design |
| Stability Grade |
High Stability, Strong Moisture Resistance |
| Electrode Material |
Tin-plated Copper Pin Leads |
| Substrate Material |
≥95% High-Quality Alumina Ceramic (Al₂O₃) |
| Sintering Temperature |
Approximately 850℃ High-Temperature Sintering |
Product Characteristics
High Voltage and Pulse Withstand Capability: Operates stably under high voltage pulse environments, exhibiting excellent surge withstand performance.
Inductive Structure Design: Effectively reduces the influence of parasitic inductance, ensuring accurate signal transmission in high-frequency and high-voltage systems.
Excellent Thermal Conductivity and Stability: High-purity ceramic substrate and precious metal thick-film technology ensure stable resistance under long-term load.
Strong Moisture Resistance and Corrosion Resistance: Adapts to complex environments, maintaining reliable electrical characteristics even after long-term use.
Multiple Packaging Options: Silicone or glass packaging structures are available to suit different media environments, depending on application requirements.
Applications
Cylindrical thick-film non-inductive high-voltage resistors are widely used in high-voltage and pulse control systems, especially suitable for the following equipment:
- High Voltage Power & Test Equipment
- Electrostatic Devices & Sprayers
- Medical CT & X-ray Systems
- Vacuum Equipment & Pressure Circuits
- High Voltage Instruments & Energy Absorption Systems
